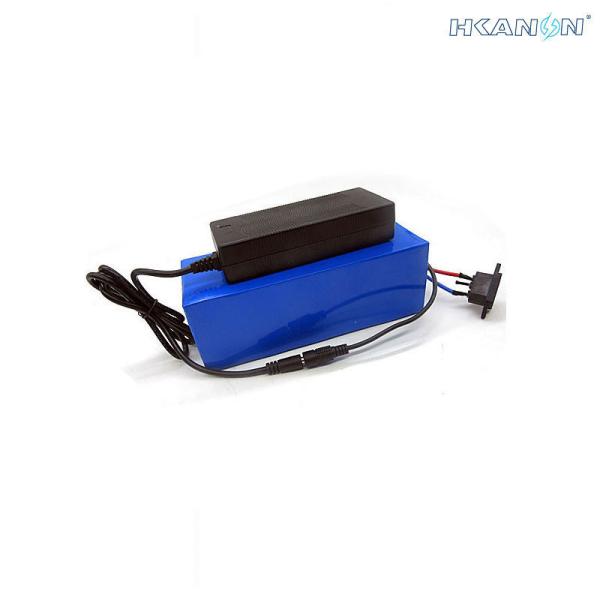

Rechargeable LiFePO4 Battery 24V 20Ah Electric Bike LiFePO4 Battery Pack
| Model | lifepo4 battery 24v 20ah |
| Nominal Voltage and Rated Capacity | 24Volt 20Ah / Watt Hours: 500Wh |
| Configuration | 8 Series 6 Paralles 8S6P-48PCS cells |
| Cells | Brand 26650 3.2V 3300mAh Cells |
| BMS | 30 Amp max continuous and 50A plusmn peak current(3-5 seconds) |
| Fit for Motor | 24V 18W 20W 50W 60W 100W 200W 250W 300W 350W |
| Charge Current | 2-5 A |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 21.6V |
| Packing List included: | 1 x Lithium Battery Built-in cells and BMS
with 30CM discharge naked cable, or soldered default discharge connector
1 x29.4V 3A Charger With AC plug |
| Size | Can be customized |
| Case | Plastic Box or Iron Box or PVC+PET can be choosed |
Charger plugs and Discharge connectors optional:
1. Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without requested.
2. Discharge Connector: There are 8 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.
Lithium battery features
Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .
Warnings
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
Shipping Ways
About Shipping:
Battery is a special product, all batteries need several cycle test before delivery, so production and
test time need about 3-7 days after confirm order;
For EU Countries customer:
Shipping by UPS/DPD, tracking number can be trackable online after arriving Europe.
Shipping time is usually 7-12 working days( not including Sat Sun) after delivery.
For USA Customers:
Shipping by Fedex/UPS, Shipping time is usually 6-12 working days after delivery.
Special Line:
1)Shipping by Special Line to Australia, Malaysia, Thailand, Taiwan, Shpping time is usually 4-12 working days.
2)Shipping by CDEK to Russia, tracking online update after arriving Moscow. Shipping time is usually 18-25 working days.
